TIRE MEASUREMENT TECHNOLOGY

Transform Tire Service with TreadReader™ DriveOver

The upgraded TREADREADER™ DriveOver is a fully automated, drive-over tire scanning solution designed for today’s high-volume service lanes. Using advanced 3D laser technology, the system captures high-resolution tread data from all four tires in seconds without stopping the vehicle or involving a technician.

Engineered for passenger vehicles, EVs, and light commercial fleets, TREADREADER™ DriveOver delivers fast, accurate tire diagnostics that help shops identify wear issues early, improve service recommendations, and build customer trust with clear visual proof.

Every scan generates a detailed 3D tread profile with industry-leading accuracy of ±0.078″, capturing over 300,000 measurement points per vehicle. This data reveals uneven wear, borderline tread depth, and potential safety concerns that may otherwise go unnoticed during a traditional inspection.

Scan results are automatically sent to the cloud-connected TREADMANAGER™ platform, where shops can view scan history, generate branded reports, and integrate data with CRM or fleet management systems. Shops retain full ownership of all scan data—ensuring transparency, control, and peace of mind.

Tread smarter. Drive safer. Sell with confidence.

Download PDF Brochure
Original Image
Modified Image

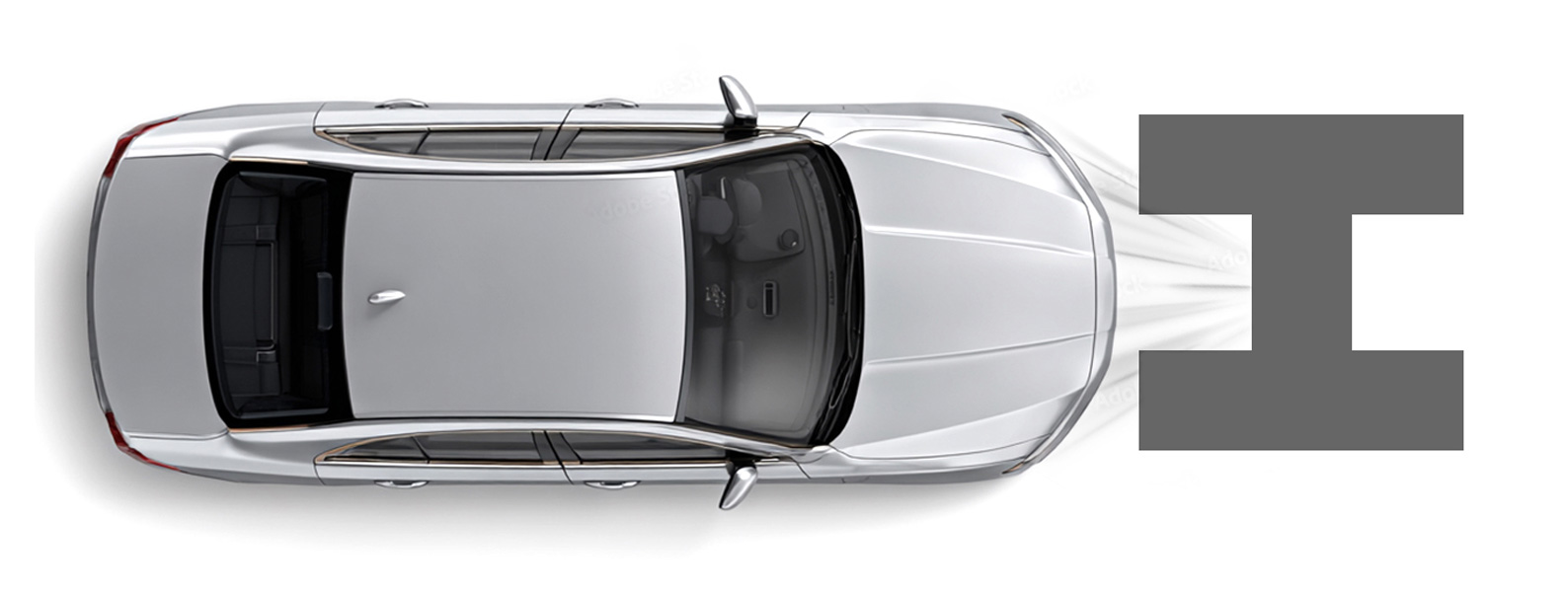

A car shown from above as passes over the profile of the TreadReader DriveOver

Key Capabilities & Features

  • Rapid, High-Precision Scans

    • Full 3D tire scans within seconds, accuracy to ±0.078″

  • All-Vehicle Compatibility

    • Handles up to 5,500 lbs. (2,500kg) per axle—ideal for EVs, passenger cars, and light commercial vehicles

  • Outdoor-Ready Performance

    • IP66 rated ramp – ensure reliable performance in varied environments

  • Advanced Tread Scanning

    • Captures up to six tread depth points per tire for deeper analysis

  • ALPR Camera Integration

    • Matches scans with license plates automatically for accurate tracking

  • Optimized Workflow Speed

    • Operates between 2.5 – 9mph to keep service lanes flowing

  • Cloud-Connected Intelligence

    • Sends results to the TreadManager™ platform for branded reports, scan history, and API integration with CRM or fleet systems

  • Industry Leading Accuracy

    • Advanced 3D laser technology builds a high-resolution pin map of each tire, filters out debris, and delivers consistent, repeatable measurements

  • Data Ownership

    • Shops retain full ownership of scan data, ensuring complete control and peace of mind

DRIVE-OVER RAMP OPERATION

How It Works—Fast, Touchless, Fully Automated

The TREADREADER™ DriveOver operates as a seamless, contactless tire inspection solution that keeps service lanes moving. As the vehicle drives over the ramp at low speed, embedded 3D laser sensors automatically scan the full width of all four tires—no lifting, stopping, or setup required.

The system adapts automatically to different vehicle types, wheelbases, and tire widths, making it ideal for mixed traffic environments and high-throughput operations. With support for axle loads up to 5,500 lbs. (2,500kg), it is well suited for EVs, SUVs, pickup trucks, and light commercial vehicles.

An integrated Automatic License Plate Recognition (ALPR) camera links each scan to the correct vehicle record, eliminating manual data entry and reducing errors. Core scan processing occurs directly on the unit for fast results, while cloud connectivity enables reporting, data history, and API integration.

Within seconds, results are available in TREADREADER™ as intuitive, color-coded visualizations that clearly show tread depth, wear patterns, and potential service needs. These real scan images turn every inspection into a clear, data-backed conversation, helping technicians explain recommendations and increasing customer confidence and service acceptance.

With consistent, repeatable scans and zero disruption to workflow, TREADREADER™ DriveOver transforms every vehicle pass into a measurable service opportunity.

TECH SPECS

Description
Specification
Maximum Axle Weight
5,500 lbs. / 2,500Kg
Measurement Accuracy
± 0.078" (± 0.2mm)
Direction
One way
Optimal Vehicle Speed
4 mph (6 km/h)
Cycle Time Within Permitted Speed Range
12-15 secs
Power
Mains (110 - 220VAC, 1A) for Control Cabinet, with (12VDC, 2A) supplied to the ramp
Measurement Trigger
Mechanical
Environmental rating for ramp
IP66(ramp) and IP40(PC Cabinet)
Operating temperature range
0°C - 50°C ≈ 32°F - 122°F
UL/CSA Approved
YES - cMETus

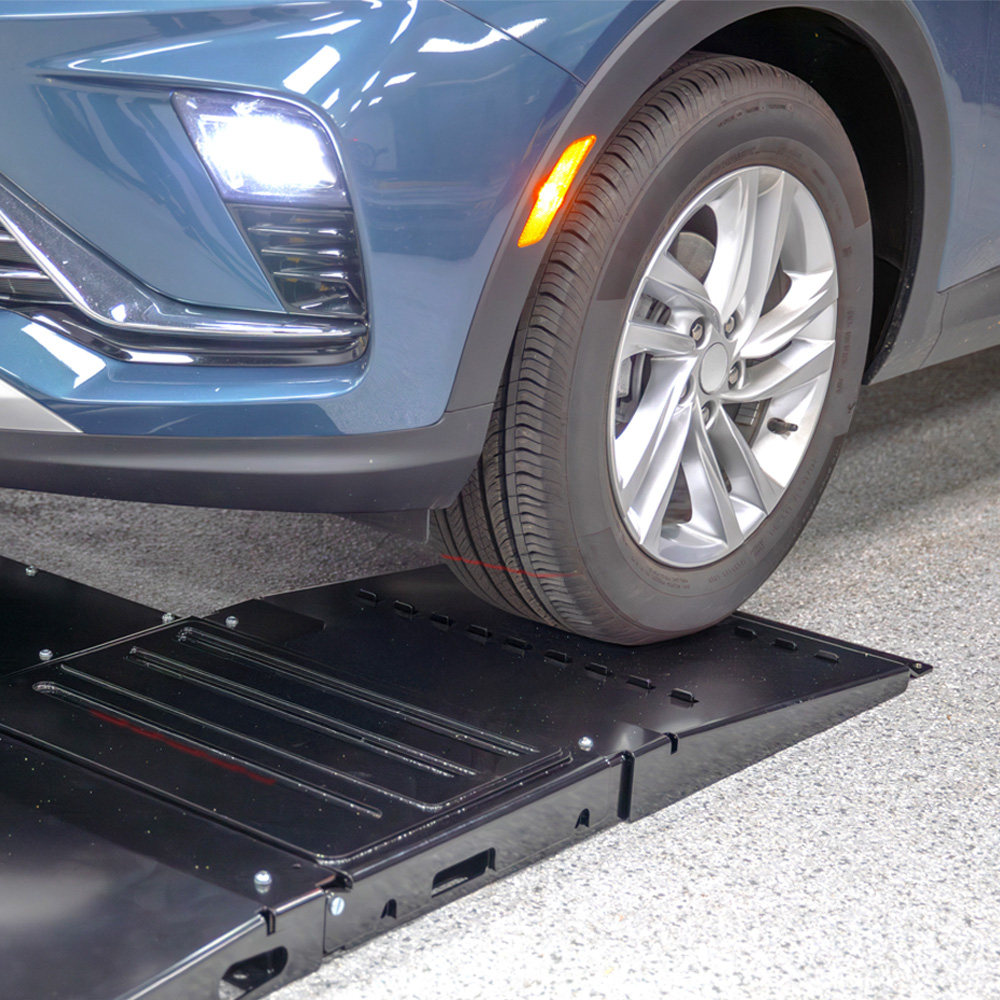

TreadReader Surface Mount Ramp
Part Number: EETD915AUC

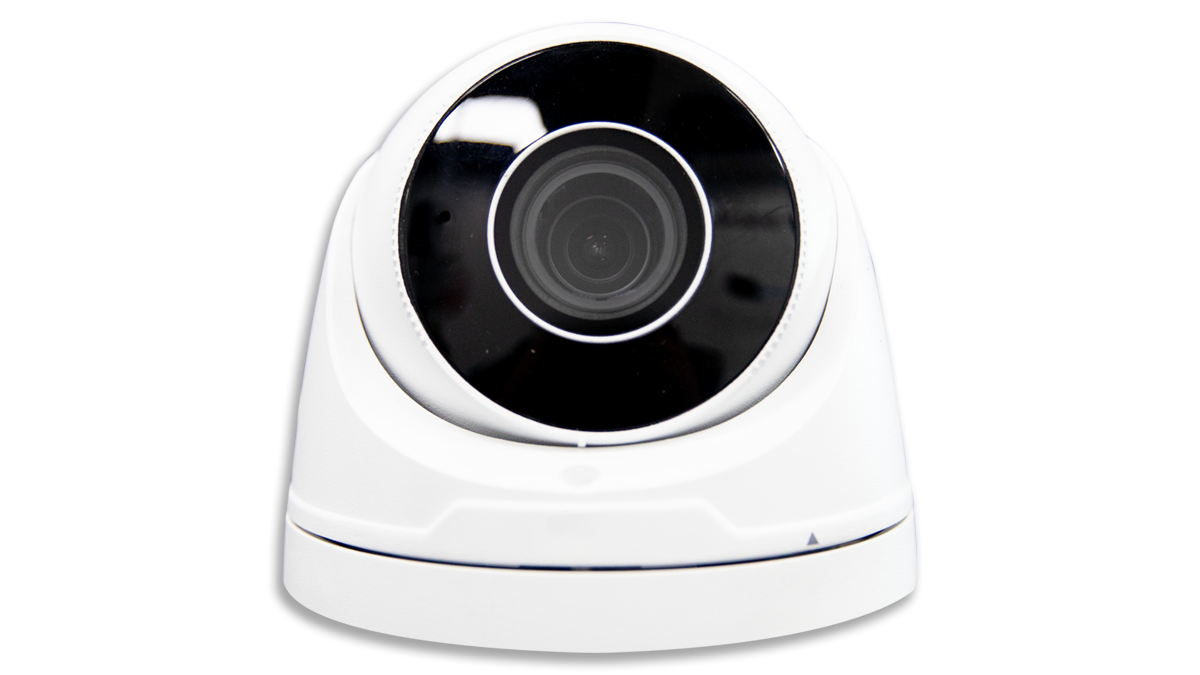

Automatic License Plate Recognition Camera

TreadReader™ DriveOver Includes:

  • Camera for Automatic License Plate Reader (ALPR)

  • Standalone PC in a control cabinet

  • Shipped as one package

  • Triple-coated metalwork to prevent corrosion

  • TreadManager™ web based application with free subscription
